Absence of Voltage Tester (AVT)

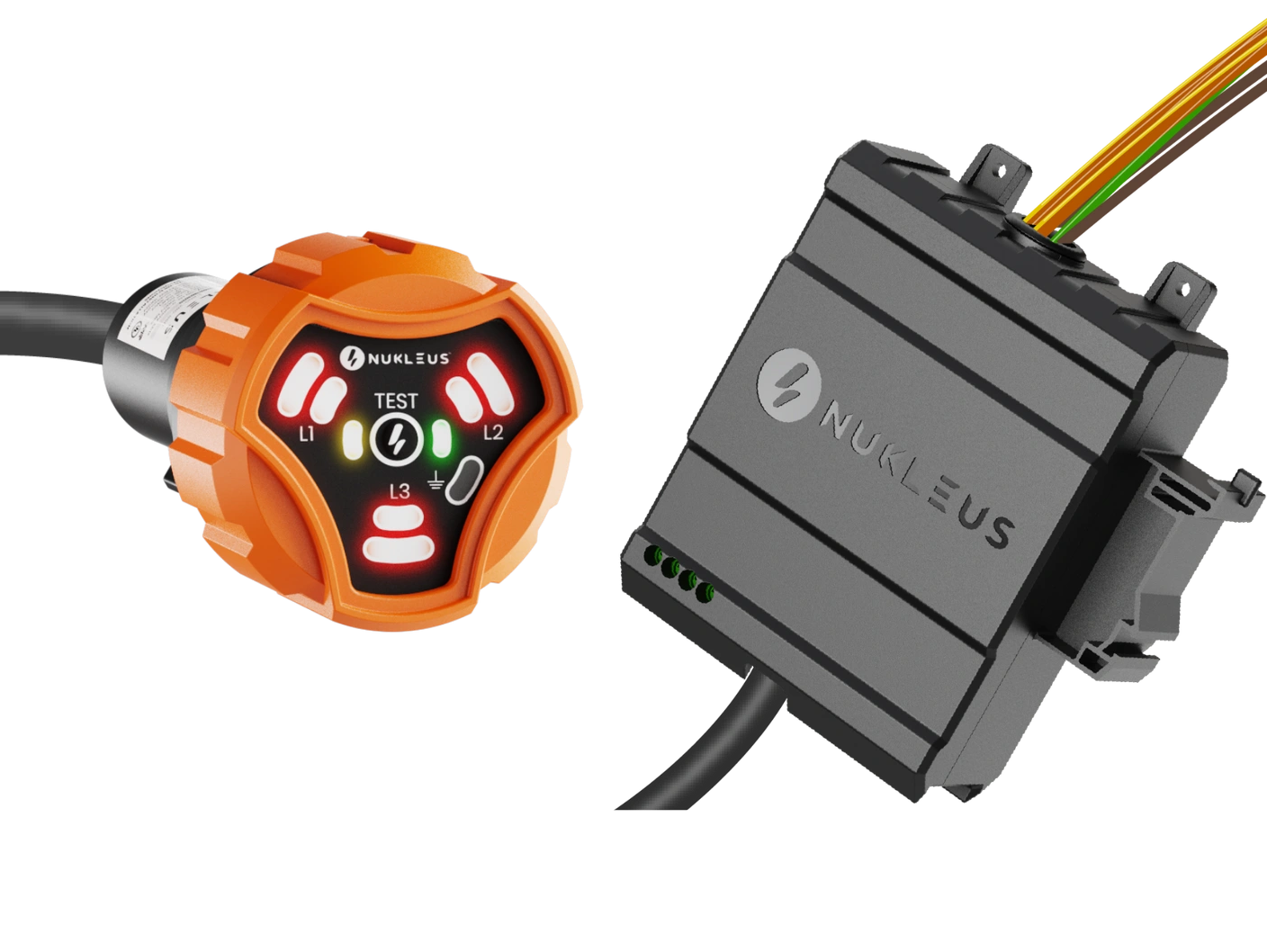

Verify both the presence and absence of voltage using a simple push-to-test button on the AVT device. This battery powered voltage tester eliminates the need for manual testers and includes an isolation module with an interconnect harness, a 30 mm knockout profile for easy installation, an 8 ft wiring harness, and a user label for enhanced electrical safety testing.
About AVT

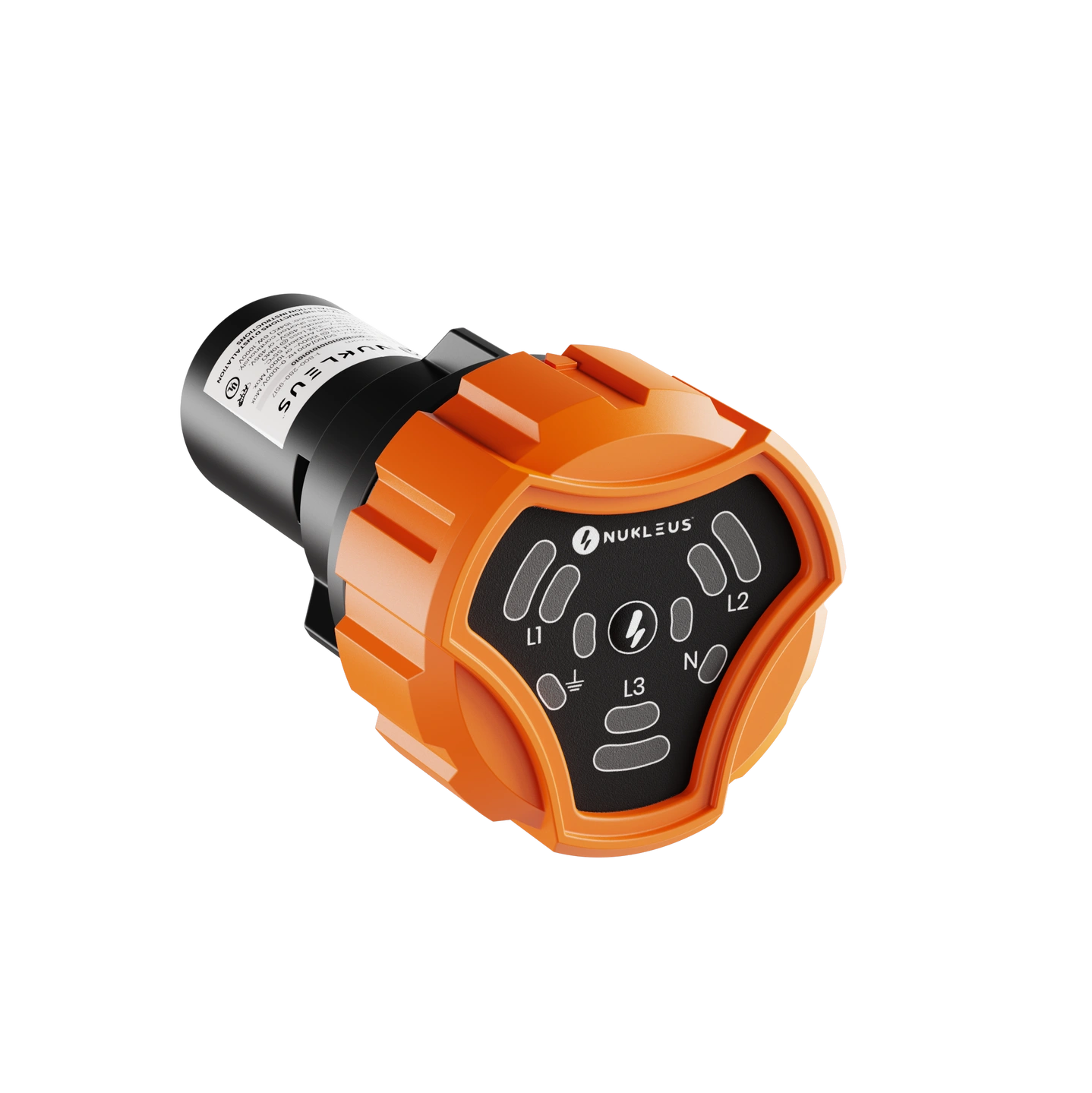

The Nukleus Absence of Voltage Tester (AVT device), powered by a long-life lithium-ion battery, verifies voltage presence and absence through a push-to-test button. This feature eliminates reliance on manual testers and reduces the need for extensive PPE during electrical safety testing.
SIL 3 certified, the AVT device aids task-qualified and qualified personnel in adhering to NFPA 70E Article 120.6 during electrical and mechanical LOTO procedures. Its dual source leads enhance functional safety, while high-visibility LEDs clearly indicate voltage status, faults, and disconnected leads. The AVT supports closed-door verification and is specifically designed for rugged industrial environments, making it ideal for retrofit installation in existing panels and switchgear.
